osgFX::Scribe Class Reference

This is a two-passes effect; the first pass renders the subgraph as usual while the second pass switches to wireframe mode, sets up lighting and material to obtain a fixed (user-defined) color and then renders the subgraph. More...

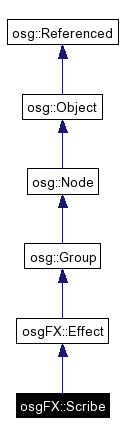

Inheritance diagram for osgFX::Scribe:

[legend]List of all members.

Public Member Functions
	Scribe ()
	Scribe (const Scribe &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)
	META_Effect (osgFX, Scribe,"Scribe","This is a two-passes effect;the first pass renders the subgraph as usual""while the second pass switches to wireframe mode, sets up lighting and""material to obtain a fixed(user-defined) color and then renders the subgraph.\n""This effect uses the PolygonOffset attribute to avoid Z-fighting, so it""requires at least OpenGL version 1.1.","Marco Jez")
const osg::Vec4 &	getWireframeColor () const
	get the wireframe color
void	setWireframeColor (const osg::Vec4 &color)
	set the wireframe color
float	getWireframeLineWidth () const
	get the wireframe line width
void	setWireframeLineWidth (float w)
	set the wireframe line width
Protected Member Functions
virtual	~Scribe ()
Scribe &	operator= (const Scribe &)
bool	define_techniques ()
	abstract method to be implemented in derived classes; its purpose if to create the techniques that can be used for obtaining the desired effect.

---

Detailed Description

This is a two-passes effect; the first pass renders the subgraph as usual while the second pass switches to wireframe mode, sets up lighting and material to obtain a fixed (user-defined) color and then renders the subgraph.

This effect uses the PolygonOffset attribute to avoid Z-fighting, so it requires at least OpenGL version 1.1.

---

Constructor & Destructor Documentation

osgFX::Scribe::Scribe (   )

osgFX::Scribe::Scribe (  const Scribe &  copy, const osg::CopyOp &  copyop = osg::CopyOp::SHALLOW_COPY )

virtual osgFX::Scribe::~Scribe (   )  [inline, protected, virtual]

---

Member Function Documentation

bool osgFX::Scribe::define_techniques (   )  [protected, virtual]

abstract method to be implemented in derived classes; its purpose if to create the techniques that can be used for obtaining the desired effect. You will usually call addTechnique() inside this method. Implements osgFX::Effect.

const osg::Vec4 & osgFX::Scribe::getWireframeColor (   )  const [inline]

get the wireframe color

float osgFX::Scribe::getWireframeLineWidth (   )  const [inline]

get the wireframe line width

osgFX::Scribe::META_Effect (  osgFX  , Scribe  , "Scribe"  , "This is a two-passes effect;the first pass renders the subgraph as usual""while the second pass switches to wireframe  mode, sets up lighting and""material to obtain a fixed(user-defined) color and then renders the subgraph.\n""This effect uses the PolygonOffset attribute to avoid Z-  fighting, so it""requires at least OpenGL version 1.1."  , "Marco Jez"  )

Scribe& osgFX::Scribe::operator= (  const Scribe &   )  [inline, protected]

void osgFX::Scribe::setWireframeColor (  const osg::Vec4 &  color  )  [inline]

set the wireframe color

void osgFX::Scribe::setWireframeLineWidth (  float  w  )  [inline]

set the wireframe line width

---

The documentation for this class was generated from the following file:

• Scribe

---
