osg::Switch Class Reference

Switch is a Group node that allows switching between children. More...

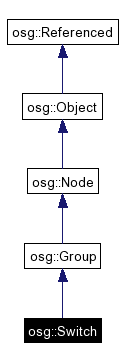

Inheritance diagram for osg::Switch:

[legend]List of all members.

Public Types
typedef std::vector< bool >	ValueList
Public Member Functions
	Switch ()
	Switch (const Switch &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
	Copy constructor using CopyOp to manage deep vs shallow copy.
	META_Node (osg, Switch)
virtual void	traverse (NodeVisitor &nv)
	Traverse downwards : calls children's accept method with NodeVisitor.
void	setNewChildDefaultValue (bool value)
bool	getNewChildDefaultValue () const
virtual bool	addChild (Node *child)
	Add Node to Group.
virtual bool	addChild (Node *child, bool value)
virtual bool	insertChild (unsigned int index, Node *child)
	Insert Node to Group at specific location.
virtual bool	insertChild (unsigned int index, Node *child, bool value)
virtual bool	removeChild (Node *child)
	Remove Node from Group.
void	setValue (unsigned int pos, bool value)
bool	getValue (unsigned int pos) const
void	setChildValue (const Node *child, bool value)
bool	getChildValue (const Node *child) const
bool	setAllChildrenOff ()
	Set all the children off (false), and set the new default child value to off (false).
bool	setAllChildrenOn ()
	Set all the children on (true), and set the new default child value to on (true).
bool	setSingleChildOn (unsigned int pos)
	Set a single child on, switch off all other children.
void	setValueList (const ValueList &values)
const ValueList &	getValueList () const
virtual BoundingSphere	computeBound () const
	Compute the bounding sphere around Node's geometry or children.
Protected Member Functions
virtual	~Switch ()
Protected Attributes
bool	_newChildDefaultValue
ValueList	_values

---

Detailed Description

Switch is a Group node that allows switching between children.

Typical uses would be for objects which might need to be rendered differently at different times, for instance a switch could be used to represent the different states of a traffic light.

---

Member Typedef Documentation

typedef std::vector<bool> osg::Switch::ValueList

---

Constructor & Destructor Documentation

osg::Switch::Switch (   )

osg::Switch::Switch (  const Switch &  , const CopyOp &  copyop = CopyOp::SHALLOW_COPY )

Copy constructor using CopyOp to manage deep vs shallow copy.

virtual osg::Switch::~Switch (   )  [inline, protected, virtual]

---

Member Function Documentation

virtual bool osg::Switch::addChild (  Node *  child, bool  value )  [virtual]

virtual bool osg::Switch::addChild (  Node *  child  )  [virtual]

Add Node to Group. If node is not NULL and is not contained in Group then increment its reference count, add it to the child list and dirty the bounding sphere to force it to recompute on next getBound() and return true for success. Otherwise return false. Scene nodes can't be added as child nodes. Reimplemented from osg::Group.

virtual BoundingSphere osg::Switch::computeBound (   )  const [virtual]

Compute the bounding sphere around Node's geometry or children. This method is automatically called by getBound() when the bounding sphere has been marked dirty via dirtyBound(). Reimplemented from osg::Group.

bool osg::Switch::getChildValue (  const Node *  child  )  const

bool osg::Switch::getNewChildDefaultValue (   )  const [inline]

bool osg::Switch::getValue (  unsigned int  pos  )  const

const ValueList& osg::Switch::getValueList (   )  const [inline]

virtual bool osg::Switch::insertChild (  unsigned int  index, Node *  child, bool  value )  [virtual]

virtual bool osg::Switch::insertChild (  unsigned int  index, Node *  child )  [virtual]

Insert Node to Group at specific location. The new child node is inserted into the child list before the node at the specified index. No nodes are removed from the group with this operation. Reimplemented from osg::Group.

osg::Switch::META_Node (  osg  , Switch  )

virtual bool osg::Switch::removeChild (  Node *  child  )  [virtual]

Remove Node from Group. If Node is contained in Group then remove it from the child list, decrement its reference count, and dirty the bounding sphere to force it to recompute on next getBound() and return true for success. If Node is not found then return false and do not change the reference count of the Node. Reimplemented from osg::Group.

bool osg::Switch::setAllChildrenOff (   )

Set all the children off (false), and set the new default child value to off (false).

bool osg::Switch::setAllChildrenOn (   )

Set all the children on (true), and set the new default child value to on (true).

void osg::Switch::setChildValue (  const Node *  child, bool  value )

void osg::Switch::setNewChildDefaultValue (  bool  value  )  [inline]

bool osg::Switch::setSingleChildOn (  unsigned int  pos  )

Set a single child on, switch off all other children.

void osg::Switch::setValue (  unsigned int  pos, bool  value )

void osg::Switch::setValueList (  const ValueList &  values  )  [inline]

virtual void osg::Switch::traverse (  NodeVisitor &  nv  )  [virtual]

Traverse downwards : calls children's accept method with NodeVisitor. Reimplemented from osg::Group.

---

Member Data Documentation

bool osg::Switch::_newChildDefaultValue [protected]

ValueList osg::Switch::_values [protected]

---

The documentation for this class was generated from the following file:

• Switch

---
