osg::ProxyNode Class Reference

ProxyNode. More...

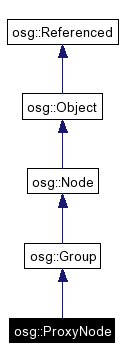

Inheritance diagram for osg::ProxyNode:

[legend]List of all members.


Public Types
typedef std::vector< std::string >	FileNameList
enum	CenterMode { USE_BOUNDING_SPHERE_CENTER, USER_DEFINED_CENTER }
	Modes which control how the center of object should be determined when computed which child is active. More...
Public Member Functions
	ProxyNode ()
	ProxyNode (const ProxyNode &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
	Copy constructor using CopyOp to manage deep vs shallow copy.
	META_Node (osg, ProxyNode)
virtual void	traverse (NodeVisitor &nv)
	Traverse downwards : calls children's accept method with NodeVisitor.
virtual bool	addChild (Node *child)
	Add Node to Group.
virtual bool	addChild (Node *child, const std::string &filename)
virtual bool	removeChild (Node *child)
	Remove Node from Group.
void	setDatabasePath (const std::string &path)
	Set the database path to prepend to children's filenames.
const std::string &	getDatabasePath () const
	Get the database path used to prepend to children's filenames.
void	setFileName (unsigned int childNo, const std::string &filename)
const std::string &	getFileName (unsigned int childNo) const
unsigned int	getNumFileNames () const
void	setCenterMode (CenterMode mode)
	Set how the center of object should be determined when computed which child is active.
CenterMode	getCenterMode () const
	Get how the center of object should be determined when computed which child is active.
void	setCenter (const Vec3 &center)
	Sets the object-space point which defines the center of the osg::ProxyNode.
const Vec3 &	getCenter () const
	return the ProxyNode center point.
void	setRadius (float radius)
	Set the object-space reference radius of the volume enclosed by the ProxyNode.
float	getRadius () const
	Get the object-space radius of the volume enclosed by the ProxyNode.
virtual BoundingSphere	computeBound () const
	Compute the bounding sphere around Node's geometry or children.
Protected Member Functions
virtual	~ProxyNode ()
void	expandFileNameListTo (unsigned int pos)
Protected Attributes
FileNameList	_filenameList
std::string	_databasePath
CenterMode	_centerMode
Vec3	_userDefinedCenter
float	_radius

Detailed Description

ProxyNode.

Member Typedef Documentation

typedef std::vector<std::string> osg::ProxyNode::FileNameList

Member Enumeration Documentation

enum osg::ProxyNode::CenterMode

Modes which control how the center of object should be determined when computed which child is active.

Enumeration values:

USE_BOUNDING_SPHERE_CENTER

USER_DEFINED_CENTER

Constructor & Destructor Documentation

osg::ProxyNode::ProxyNode ( )

osg::ProxyNode::ProxyNode ( const ProxyNode & ,

const CopyOp & copyop = CopyOp::SHALLOW_COPY

)

Copy constructor using CopyOp to manage deep vs shallow copy.

virtual osg::ProxyNode::~ProxyNode ( ) [inline, protected, virtual]

Member Function Documentation

virtual bool osg::ProxyNode::addChild ( Node * child,

const std::string & filename

) [virtual]

virtual bool osg::ProxyNode::addChild ( Node * child ) [virtual]

Add Node to Group.
If node is not NULL and is not contained in Group then increment its reference count, add it to the child list and dirty the bounding sphere to force it to recompute on next getBound() and return true for success. Otherwise return false. Scene nodes can't be added as child nodes.
Reimplemented from osg::Group.

virtual BoundingSphere osg::ProxyNode::computeBound ( ) const [virtual]

Compute the bounding sphere around Node's geometry or children.
This method is automatically called by getBound() when the bounding sphere has been marked dirty via dirtyBound().
Reimplemented from osg::Group.

void osg::ProxyNode::expandFileNameListTo ( unsigned int pos ) [protected]

const Vec3& osg::ProxyNode::getCenter ( ) const [inline]

return the ProxyNode center point.

CenterMode osg::ProxyNode::getCenterMode ( ) const [inline]

Get how the center of object should be determined when computed which child is active.

const std::string& osg::ProxyNode::getDatabasePath ( ) const [inline]

Get the database path used to prepend to children's filenames.

const std::string& osg::ProxyNode::getFileName ( unsigned int childNo ) const [inline]

unsigned int osg::ProxyNode::getNumFileNames ( ) const [inline]

float osg::ProxyNode::getRadius ( ) const [inline]

Get the object-space radius of the volume enclosed by the ProxyNode.

osg::ProxyNode::META_Node ( osg ,

ProxyNode

)

virtual bool osg::ProxyNode::removeChild ( Node * child ) [virtual]

Remove Node from Group.
If Node is contained in Group then remove it from the child list, decrement its reference count, and dirty the bounding sphere to force it to recompute on next getBound() and return true for success. If Node is not found then return false and do not change the reference count of the Node.
Reimplemented from osg::Group.

void osg::ProxyNode::setCenter ( const Vec3 & center ) [inline]

Sets the object-space point which defines the center of the osg::ProxyNode.
center is affected by any transforms in the hierarchy above the osg::ProxyNode.

void osg::ProxyNode::setCenterMode ( CenterMode mode ) [inline]

Set how the center of object should be determined when computed which child is active.

void osg::ProxyNode::setDatabasePath ( const std::string & path )

Set the database path to prepend to children's filenames.

void osg::ProxyNode::setFileName ( unsigned int childNo,

const std::string & filename

) [inline]

void osg::ProxyNode::setRadius ( float radius ) [inline]

Set the object-space reference radius of the volume enclosed by the ProxyNode.
Used to detmine the bounding sphere of the ProxyNode in the absense of any children.

virtual void osg::ProxyNode::traverse ( NodeVisitor & nv ) [virtual]

Traverse downwards : calls children's accept method with NodeVisitor.

Reimplemented from osg::Group.
