osgParticle::ParticleSystem Class Reference

The heart of this class library; its purpose is to hold a set of particles and manage particle creation, update, rendering and destruction. More...

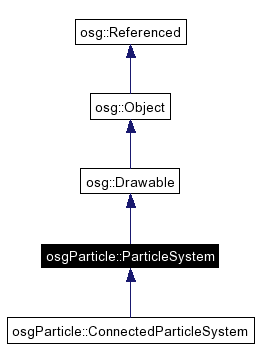

Inheritance diagram for osgParticle::ParticleSystem:

[legend]List of all members.


Public Types
enum	Alignment { BILLBOARD, FIXED }
Public Member Functions
	ParticleSystem ()
	ParticleSystem (const ParticleSystem &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)
	META_Object (osgParticle, ParticleSystem)
Alignment	getParticleAlignment () const
	Get the alignment type of particles.
void	setParticleAlignment (Alignment a)
	Set the alignment type of particles.
const osg::Vec3 &	getAlignVectorX () const
	Get the X-axis alignment vector.
void	setAlignVectorX (const osg::Vec3 &v)
	Set the X-axis alignment vector.
const osg::Vec3 &	getAlignVectorY () const
	Get the Y-axis alignment vector.
void	setAlignVectorY (const osg::Vec3 &v)
	Set the Y-axis alignment vector.
void	setAlignVectors (const osg::Vec3 &X, const osg::Vec3 &Y)
	Set the alignment vectors.
const osg::BoundingBox &	getDefaultBoundingBox () const
	Get the default bounding box.
void	setDefaultBoundingBox (const osg::BoundingBox &bbox)
	Set the default bounding box.
bool	getDoublePassRendering () const
	Get the double pass rendering flag.
void	setDoublePassRendering (bool v)
	Set the double pass rendering flag.
bool	isFrozen () const
	Return true if the particle system is frozen.
void	setFrozen (bool v)
	Set or reset the frozen state.
int	numParticles () const
	Get the number of allocated particles (alive + dead).
int	numDeadParticles () const
	Get the number of dead particles.
bool	areAllParticlesDead () const
	Get whether all particles are dead.
Particle *	getParticle (int i)
	Get a pointer to the i-th particle.
const Particle *	getParticle (int i) const
	Get a const pointer to the i-th particle.
virtual Particle *	createParticle (const Particle *ptemplate)
	Create a new particle from the specified template (or the default one if `ptemplate` is null).
virtual void	destroyParticle (int i)
	Destroy the i-th particle.
virtual void	reuseParticle (int i)
	Reuse the i-th particle.
int	getLastFrameNumber () const
	Get the last frame number.
Particle &	getDefaultParticleTemplate ()
	Get a reference to the default particle template.
const Particle &	getDefaultParticleTemplate () const
	Get a const reference to the default particle template.
void	setDefaultParticleTemplate (const Particle &p)
	Set the default particle template (particle is copied).
bool	getFreezeOnCull () const
	Get whether the particle system can freeze when culled.
void	setFreezeOnCull (bool v)
	Set whether the particle system can freeze when culled (default is true).
void	setDefaultAttributes (const std::string &texturefile="", bool emissive_particles=true, bool lighting=false, int texture_unit=0)
	A useful method to set the most common `StateAttribute`'s in one call.
int	getLevelOfDetail () const
	(EXPERIMENTAL) Get the level of detail.
void	setLevelOfDetail (int v)
	(EXPERIMENTAL) Set the level of detail.
virtual void	update (double dt)
	Update the particles. Don't call this directly, use a `ParticleSystemUpdater` instead.
virtual void	drawImplementation (osg::State &state) const
	drawImplementation(State&) is a pure virtaul method for the actual implementation of OpenGL drawing calls, such as vertex arrays and primitives, that must be implemented in concrete subclasses of the Drawable base class, examples include osg::Geometry and osg::ShapeDrawable.
virtual osg::BoundingBox	computeBound () const
	Compute the bounding box around Drawables's geometry.
Protected Types
typedef std::vector< Particle >	Particle_vector
typedef std::stack< Particle * >	Death_stack
Protected Member Functions
virtual	~ParticleSystem ()
ParticleSystem &	operator= (const ParticleSystem &)
void	update_bounds (const osg::Vec3 &p, float r)
void	single_pass_render (osg::State &state, const osg::Matrix &modelview) const
Protected Attributes
Particle_vector	_particles
Death_stack	_deadparts
osg::BoundingBox	_def_bbox
Alignment	_alignment
osg::Vec3	_align_X_axis
osg::Vec3	_align_Y_axis
bool	_doublepass
bool	_frozen
osg::Vec3	_bmin
osg::Vec3	_bmax
bool	_reset_bounds_flag
bool	_bounds_computed
Particle	_def_ptemp
int	_last_frame
bool	_freeze_on_cull
int	_detail
int	_draw_count

Detailed Description

The heart of this class library; its purpose is to hold a set of particles and manage particle creation, update, rendering and destruction.

You can add this drawable to any Geode as you usually do with other Drawable classes. Each instance of ParticleSystem is a separate set of particles; it provides the interface for creating particles and iterating through them (see the Emitter and Program classes).

Member Typedef Documentation

typedef std::stack<Particle*> osgParticle::ParticleSystem::Death_stack [protected]

typedef std::vector<Particle> osgParticle::ParticleSystem::Particle_vector [protected]

Member Enumeration Documentation

enum osgParticle::ParticleSystem::Alignment

Enumeration values:

BILLBOARD

FIXED

Constructor & Destructor Documentation

osgParticle::ParticleSystem::ParticleSystem ( )

osgParticle::ParticleSystem::ParticleSystem ( const ParticleSystem & copy,

const osg::CopyOp & copyop = osg::CopyOp::SHALLOW_COPY

)

virtual osgParticle::ParticleSystem::~ParticleSystem ( ) [protected, virtual]

Member Function Documentation

bool osgParticle::ParticleSystem::areAllParticlesDead ( ) const [inline]

Get whether all particles are dead.

virtual osg::BoundingBox osgParticle::ParticleSystem::computeBound ( ) const [virtual]

Compute the bounding box around Drawables's geometry.

Reimplemented from osg::Drawable.

Particle * osgParticle::ParticleSystem::createParticle ( const Particle * ptemplate ) [inline, virtual]

Create a new particle from the specified template (or the default one if ptemplate is null).

Reimplemented in osgParticle::ConnectedParticleSystem.

void osgParticle::ParticleSystem::destroyParticle ( int i ) [inline, virtual]

Destroy the i-th particle.

virtual void osgParticle::ParticleSystem::drawImplementation ( osg::State & state ) const [virtual]

drawImplementation(State&) is a pure virtaul method for the actual implementation of OpenGL drawing calls, such as vertex arrays and primitives, that must be implemented in concrete subclasses of the Drawable base class, examples include osg::Geometry and osg::ShapeDrawable.
drawImplementation(State&) is called from the draw(State&) method, with the draw method handling management of OpenGL display lists, and drawImplementation(State&) handling the actuall drawing itself.
Parameters:

state The osg::State object that encapulates the current OpenGL state for the current graphics context.

Implements osg::Drawable.
Reimplemented in osgParticle::ConnectedParticleSystem.

const osg::Vec3 & osgParticle::ParticleSystem::getAlignVectorX ( ) const [inline]

Get the X-axis alignment vector.

const osg::Vec3 & osgParticle::ParticleSystem::getAlignVectorY ( ) const [inline]

Get the Y-axis alignment vector.

const osg::BoundingBox & osgParticle::ParticleSystem::getDefaultBoundingBox ( ) const [inline]

Get the default bounding box.

const Particle & osgParticle::ParticleSystem::getDefaultParticleTemplate ( ) const [inline]

Get a const reference to the default particle template.

Particle & osgParticle::ParticleSystem::getDefaultParticleTemplate ( ) [inline]

Get a reference to the default particle template.

bool osgParticle::ParticleSystem::getDoublePassRendering ( ) const [inline]

Get the double pass rendering flag.

bool osgParticle::ParticleSystem::getFreezeOnCull ( ) const [inline]

Get whether the particle system can freeze when culled.

int osgParticle::ParticleSystem::getLastFrameNumber ( ) const [inline]

Get the last frame number.

int osgParticle::ParticleSystem::getLevelOfDetail ( ) const [inline]

(EXPERIMENTAL) Get the level of detail.

const Particle * osgParticle::ParticleSystem::getParticle ( int i ) const [inline]

Get a const pointer to the i-th particle.

Particle * osgParticle::ParticleSystem::getParticle ( int i ) [inline]

Get a pointer to the i-th particle.

ParticleSystem::Alignment osgParticle::ParticleSystem::getParticleAlignment ( ) const [inline]

Get the alignment type of particles.

bool osgParticle::ParticleSystem::isFrozen ( ) const [inline]

Return true if the particle system is frozen.

osgParticle::ParticleSystem::META_Object ( osgParticle ,

ParticleSystem

)

int osgParticle::ParticleSystem::numDeadParticles ( ) const [inline]

Get the number of dead particles.

int osgParticle::ParticleSystem::numParticles ( ) const [inline]

Get the number of allocated particles (alive + dead).

ParticleSystem& osgParticle::ParticleSystem::operator= ( const ParticleSystem & ) [inline, protected]

virtual void osgParticle::ParticleSystem::reuseParticle ( int i ) [inline, virtual]

Reuse the i-th particle.

Reimplemented in osgParticle::ConnectedParticleSystem.

void osgParticle::ParticleSystem::setAlignVectors ( const osg::Vec3 & X,

const osg::Vec3 & Y

) [inline]

Set the alignment vectors.

void osgParticle::ParticleSystem::setAlignVectorX ( const osg::Vec3 & v ) [inline]

Set the X-axis alignment vector.

void osgParticle::ParticleSystem::setAlignVectorY ( const osg::Vec3 & v ) [inline]

Set the Y-axis alignment vector.

void osgParticle::ParticleSystem::setDefaultAttributes ( const std::string & texturefile = "",

bool emissive_particles = true,

bool lighting = false,

int texture_unit = 0

)

A useful method to set the most common StateAttribute's in one call.
If texturefile is empty, then texturing is turned off.

void osgParticle::ParticleSystem::setDefaultBoundingBox ( const osg::BoundingBox & bbox ) [inline]

Set the default bounding box.
The default bounding box is used when a real bounding box cannot be computed, for example because no particles has been updated yet.

void osgParticle::ParticleSystem::setDefaultParticleTemplate ( const Particle & p ) [inline]

Set the default particle template (particle is copied).

void osgParticle::ParticleSystem::setDoublePassRendering ( bool v ) [inline]

Set the double pass rendering flag.
Double pass rendering avoids overdraw problems between particle systems and other opaque objects. If you can render all the particle systems after the opaque objects, then double pass is not necessary and can be turned off (best choice). If you set the default attributes with setDefaultAttributes, then the particle system will fall into a transparent bin.

void osgParticle::ParticleSystem::setFreezeOnCull ( bool v ) [inline]

Set whether the particle system can freeze when culled (default is true).

void osgParticle::ParticleSystem::setFrozen ( bool v ) [inline]

Set or reset the frozen state.
When the particle system is frozen, emitters and programs won't do anything on it.

void osgParticle::ParticleSystem::setLevelOfDetail ( int v ) [inline]

(EXPERIMENTAL) Set the level of detail.
The total number of particles is divided by the detail value to get the actual number of particles to be drawn. This value must be greater than zero.

void osgParticle::ParticleSystem::setParticleAlignment ( Alignment a ) [inline]

Set the alignment type of particles.

void osgParticle::ParticleSystem::single_pass_render ( osg::State & state,

const osg::Matrix & modelview

) const [protected]

virtual void osgParticle::ParticleSystem::update ( double dt ) [virtual]

Update the particles. Don't call this directly, use a ParticleSystemUpdater instead.
