osg::LightSource Class Reference

Leaf Node for defining a light in the scene. More...

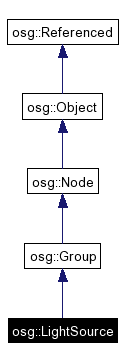

Inheritance diagram for osg::LightSource:

[legend]List of all members.

Public Types
enum	ReferenceFrame { RELATIVE_RF, ABSOLUTE_RF }
Public Member Functions
	LightSource ()
	LightSource (const LightSource &ls, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
	Copy constructor using CopyOp to manage deep vs shallow copy.
	META_Node (osg, LightSource)
void	setReferenceFrame (ReferenceFrame rf)
	Set the light sources's ReferenceFrame, either to be relative to its parent reference frame, or relative to an absolute coordinate frame.
ReferenceFrame	getReferenceFrame () const
void	setLight (Light *light)
	Set the attached light.
Light *	getLight ()
	Get the attached light.
const Light *	getLight () const
	Get the const attached light.
void	setStateSetModes (StateSet &, StateAttribute::GLModeValue) const
	Set the GLModes on StateSet associated with the LightSource.
void	setLocalStateSetModes (StateAttribute::GLModeValue value=StateAttribute::ON)
	Set up the local StateSet.
virtual BoundingSphere	computeBound () const
	Compute the bounding sphere around Node's geometry or children.
Protected Member Functions
virtual	~LightSource ()
Protected Attributes
StateAttribute::GLModeValue	_value
ref_ptr< Light >	_light
ReferenceFrame	_referenceFrame

---

Detailed Description

Leaf Node for defining a light in the scene.

---

Member Enumeration Documentation

enum osg::LightSource::ReferenceFrame

Enumeration values: RELATIVE_RF  ABSOLUTE_RF

---

Constructor & Destructor Documentation

osg::LightSource::LightSource (   )

osg::LightSource::LightSource (  const LightSource &  ls, const CopyOp &  copyop = CopyOp::SHALLOW_COPY )  [inline]

Copy constructor using CopyOp to manage deep vs shallow copy.

virtual osg::LightSource::~LightSource (   )  [protected, virtual]

---

Member Function Documentation

virtual BoundingSphere osg::LightSource::computeBound (   )  const [virtual]

Compute the bounding sphere around Node's geometry or children. This method is automatically called by getBound() when the bounding sphere has been marked dirty via dirtyBound(). Reimplemented from osg::Group.

const Light* osg::LightSource::getLight (   )  const [inline]

Get the const attached light.

Light* osg::LightSource::getLight (   )  [inline]

Get the attached light.

ReferenceFrame osg::LightSource::getReferenceFrame (   )  const [inline]

osg::LightSource::META_Node (  osg  , LightSource  )

void osg::LightSource::setLight (  Light *  light  )

Set the attached light.

void osg::LightSource::setLocalStateSetModes (  StateAttribute::GLModeValue  value = StateAttribute::ON  )

Set up the local StateSet.

void osg::LightSource::setReferenceFrame (  ReferenceFrame  rf  )

Set the light sources's ReferenceFrame, either to be relative to its parent reference frame, or relative to an absolute coordinate frame. RELATIVE_RF is the default. Note: setting the ReferenceFrame to be ABSOLUTE_RF will also set the CullingActive flag on the light source, and hence all of its parents, to false, thereby disabling culling of it and all its parents. This is necessary to prevent inappropriate culling, but may impact cull times if the absolute light source is deep in the scene graph. It is therefore recommended to only use absolute light source at the top of the scene.

void osg::LightSource::setStateSetModes (  StateSet &  , StateAttribute::GLModeValue  )  const

Set the GLModes on StateSet associated with the LightSource.

---

Member Data Documentation

ref_ptr<Light> osg::LightSource::_light [protected]

ReferenceFrame osg::LightSource::_referenceFrame [protected]

StateAttribute::GLModeValue osg::LightSource::_value [protected]

---

The documentation for this class was generated from the following file:

• LightSource

---
