osgGA::TerrainManipulator Class Reference

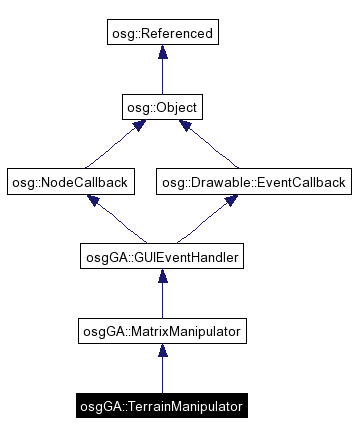

Inheritance diagram for osgGA::TerrainManipulator:

[legend]List of all members.


Public Types
enum	RotationMode { ELEVATION_AZIM_ROLL, ELEVATION_AZIM }
Public Member Functions
	TerrainManipulator ()
virtual const char *	className () const
	return the name of the object's class type.
void	setRotationMode (RotationMode mode)
RotationMode	getRotationMode () const
virtual void	setByMatrix (const osg::Matrixd &matrix)
	set the position of the matrix manipulator using a 4x4 Matrix.
virtual void	setByInverseMatrix (const osg::Matrixd &matrix)
	set the position of the matrix manipulator using a 4x4 Matrix.
virtual osg::Matrixd	getMatrix () const
	get the position of the manipulator as 4x4 Matrix.
virtual osg::Matrixd	getInverseMatrix () const
	get the position of the manipulator as a inverse matrix of the manipulator, typically used as a model view matrix.
virtual osgUtil::SceneView::FusionDistanceMode	getFusionDistanceMode () const
	Get the FusionDistanceMode.
virtual float	getFusionDistanceValue () const
	Get the FusionDistanceValue.
virtual void	setNode (osg::Node *)
	Attach a node to the manipulator.
virtual const osg::Node *	getNode () const
	Return node if attached.
virtual osg::Node *	getNode ()
	Return node if attached.
virtual void	home (const GUIEventAdapter &ea, GUIActionAdapter &us)
	Move the camera to the default position.
virtual void	init (const GUIEventAdapter &ea, GUIActionAdapter &us)
	Start/restart the manipulator.
virtual bool	handle (const GUIEventAdapter &ea, GUIActionAdapter &us)
	handle events, return true if handled, false otherwise.
virtual void	getUsage (osg::ApplicationUsage &usage) const
	Get the keyboard and mouse usage of this manipulator.
Protected Member Functions
virtual	~TerrainManipulator ()
void	flushMouseEventStack ()
	Reset the internal GUIEvent stack.
void	addMouseEvent (const GUIEventAdapter &ea)
	Add the current mouse GUIEvent to internal stack.
void	computePosition (const osg::Vec3d &eye, const osg::Vec3d &lv, const osg::Vec3d &up)
bool	calcMovement ()
	For the give mouse movement calculate the movement of the camera.
void	trackball (osg::Vec3 &axis, double &angle, double p1x, double p1y, double p2x, double p2y)
double	tb_project_to_sphere (double r, double x, double y)
bool	isMouseMoving ()
	Check the speed at which the mouse is moving.
void	clampOrientation ()
Protected Attributes
osg::ref_ptr< const GUIEventAdapter >	_ga_t1
osg::ref_ptr< const GUIEventAdapter >	_ga_t0
osg::ref_ptr< osg::Node >	_node
RotationMode	_rotationMode
bool	_thrown
osg::Vec3d	_center
osg::Quat	_rotation
float	_distance
osg::Vec3d	_previousUp

Member Enumeration Documentation

enum osgGA::TerrainManipulator::RotationMode

Enumeration values:

ELEVATION_AZIM_ROLL

ELEVATION_AZIM

Constructor & Destructor Documentation

osgGA::TerrainManipulator::TerrainManipulator ( )

virtual osgGA::TerrainManipulator::~TerrainManipulator ( ) [protected, virtual]

Member Function Documentation

void osgGA::TerrainManipulator::addMouseEvent ( const GUIEventAdapter & ea ) [protected]

Add the current mouse GUIEvent to internal stack.

bool osgGA::TerrainManipulator::calcMovement ( ) [protected]

For the give mouse movement calculate the movement of the camera.
Return true is camera has moved and a redraw is required.

void osgGA::TerrainManipulator::clampOrientation ( ) [protected]

virtual const char* osgGA::TerrainManipulator::className ( ) const [inline, virtual]

return the name of the object's class type.
Must be defined by derived classes.
Reimplemented from osgGA::MatrixManipulator.

void osgGA::TerrainManipulator::computePosition ( const osg::Vec3d & eye,

const osg::Vec3d & lv,

const osg::Vec3d & up

) [protected]

void osgGA::TerrainManipulator::flushMouseEventStack ( ) [protected]

Reset the internal GUIEvent stack.

virtual osgUtil::SceneView::FusionDistanceMode osgGA::TerrainManipulator::getFusionDistanceMode ( ) const [inline, virtual]

Get the FusionDistanceMode.
Used by SceneView for setting up setereo convergence.
Reimplemented from osgGA::MatrixManipulator.

virtual float osgGA::TerrainManipulator::getFusionDistanceValue ( ) const [inline, virtual]

Get the FusionDistanceValue.
Used by SceneView for setting up setereo convergence.
Reimplemented from osgGA::MatrixManipulator.

virtual osg::Matrixd osgGA::TerrainManipulator::getInverseMatrix ( ) const [virtual]

get the position of the manipulator as a inverse matrix of the manipulator, typically used as a model view matrix.

Implements osgGA::MatrixManipulator.

virtual osg::Matrixd osgGA::TerrainManipulator::getMatrix ( ) const [virtual]

get the position of the manipulator as 4x4 Matrix.

Implements osgGA::MatrixManipulator.

virtual osg::Node* osgGA::TerrainManipulator::getNode ( ) [virtual]

Return node if attached.

Reimplemented from osgGA::MatrixManipulator.

virtual const osg::Node* osgGA::TerrainManipulator::getNode ( ) const [virtual]

Return node if attached.

Reimplemented from osgGA::MatrixManipulator.

RotationMode osgGA::TerrainManipulator::getRotationMode ( ) const [inline]

virtual void osgGA::TerrainManipulator::getUsage ( osg::ApplicationUsage & usage ) const [virtual]

Get the keyboard and mouse usage of this manipulator.

Reimplemented from osgGA::GUIEventHandler.

virtual bool osgGA::TerrainManipulator::handle ( const GUIEventAdapter & ea,

GUIActionAdapter & us

) [virtual]

handle events, return true if handled, false otherwise.

Reimplemented from osgGA::MatrixManipulator.

virtual void osgGA::TerrainManipulator::home ( const GUIEventAdapter & ea,

GUIActionAdapter & us

) [virtual]

Move the camera to the default position.
May be ignored by manipulators if home functionality is not appropriate.
Reimplemented from osgGA::MatrixManipulator.

virtual void osgGA::TerrainManipulator::init ( const GUIEventAdapter & ea,

GUIActionAdapter & us

) [virtual]

Start/restart the manipulator.

Reimplemented from osgGA::MatrixManipulator.

bool osgGA::TerrainManipulator::isMouseMoving ( ) [protected]

Check the speed at which the mouse is moving.
If speed is below a threshold then return false, otherwise return true.

virtual void osgGA::TerrainManipulator::setByInverseMatrix ( const osg::Matrixd & matrix ) [inline, virtual]

set the position of the matrix manipulator using a 4x4 Matrix.

Implements osgGA::MatrixManipulator.

virtual void osgGA::TerrainManipulator::setByMatrix ( const osg::Matrixd & matrix ) [virtual]

set the position of the matrix manipulator using a 4x4 Matrix.

Implements osgGA::MatrixManipulator.

virtual void osgGA::TerrainManipulator::setNode ( osg::Node * ) [virtual]

Attach a node to the manipulator.
Automatically detaches previously attached node. setNode(NULL) detaches previously nodes. Is ignored by manipulators which do not require a reference model.
Reimplemented from osgGA::MatrixManipulator.

void osgGA::TerrainManipulator::setRotationMode ( RotationMode mode )

double osgGA::TerrainManipulator::tb_project_to_sphere ( double r,

double x,

double y

) [protected]

void osgGA::TerrainManipulator::trackball ( osg::Vec3 & axis,

double & angle,

double p1x,

double p1y,

double p2x,

double p2y

) [protected]
