osgProducer::Viewer Class Reference

A Producer-based viewer. More...

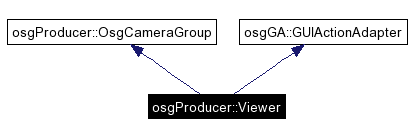

Inheritance diagram for osgProducer::Viewer:

[legend]List of all members.


Public Types
typedef std::list< osg::ref_ptr< osgGA::GUIEventHandler > >	EventHandlerList
enum	ViewerOptions { NO_EVENT_HANDLERS = 0, TRACKBALL_MANIPULATOR = 1, DRIVE_MANIPULATOR = 2, FLIGHT_MANIPULATOR = 4, TERRAIN_MANIPULATOR = 8, UFO_MANIPULATOR = 0x10, STATE_MANIPULATOR = 32, HEAD_LIGHT_SOURCE = 64, SKY_LIGHT_SOURCE = 128, STATS_MANIPULATOR = 256, VIEWER_MANIPULATOR = 512, ESCAPE_SETS_DONE = 1024, STANDARD_SETTINGS }
	Specifies options to control some aspects of the `Viewer` behavior (using the `setUpViewer()` member function). More...
Public Member Functions
	Viewer ()
	Viewer (Producer::CameraConfig *cfg)
	Viewer (const std::string &configFile)
	Viewer (osg::ArgumentParser &arguments)
virtual	~Viewer ()
void	setUpViewer (unsigned int options=STANDARD_SETTINGS)
	Set up the viewer, allowing to control some aspects of its behavior.
void	setDoneAtElapsedTime (double elapsedTime)
	Set the viewer so it sets done to true once the refrence time equals or exceeds specified elapsed time.
double	getDoneAtElapsedTime () const
	Get the elapsed time that will cause done to be set to be true.
void	setDoneAtElapsedTimeEnabled (bool enabled)
	Set whether to use a elapsed time to limit the run of the viewer.
bool	getDoneAtElapsedTimeEnabled () const
	Get whether to use a elapsed time to limit the run of the viewer.
void	setDoneAtFrameNumber (unsigned int frameNumber)
	Set the viewer so it sets done to true once the frame number equals or exceeds specified frame number.
unsigned int	getDoneAtFrameNumber () const
	Get the frame number that will cause done to be set to be true.
void	setDoneAtFrameNumberEnabled (bool enabled)
	Set whether to use a frame number to limit the run of the viewer.
bool	getDoneAtFrameNumberEnabled () const
	Get whether to use a frame number to limit the run of the viewer.
void	setDone (bool done)
	Set the done flag signalling that the viewer exit.
bool	getDone () const
	Get the done flag which signals that the viewer exit.
virtual bool	done () const
	Return true if the application is done and should exit.
void	setWriteImageWhenDone (bool enabled)
	Set the viewer to take an image snapshot on the last frame() when done is enabled.
bool	getWriteImageWhenDone () const
	Set the viewer to take an image snapshot on the last frame() when done is enabled.
void	setWriteImageFileName (const std::string &filename)
	Set the filename to write to when the viewer takes an image snapshot on the last frame() when done is enabled.
const std::string &	getWriteImageFileName () const
	Set the filename to write to when the viewer takes an image snapshot on the last frame() when done is enabled.
virtual void	setViewByMatrix (const Producer::Matrix &pm)
	Override the Producer::CameraGroup::setViewByMatrix to catch all changes to view.
virtual bool	realize (ThreadingModel thread_model)
	Set the threading model and then call realize().
virtual bool	realize ()
	Realize the render surfaces (OpenGL graphics) and various threads, and call any realize callbacks.
virtual void	update ()
	Updated the scene.
void	setUpdateVisitor (osg::NodeVisitor *nv)
	Set the update visitor which does the update traversal of the scene graph.
osg::NodeVisitor *	getUpdateVisitor ()
	Get the update visitor.
const osg::NodeVisitor *	getUpdateVisitor () const
	Get the const update visitor.
void	setEventVisitor (osgGA::EventVisitor *nv)
	Set the update visitor which does the event traversal of the scene graph.
osgGA::EventVisitor *	getEventVisitor ()
	Get the update visitor.
const osgGA::EventVisitor *	getEventVisitor () const
	Get the const update visitor.
void	computeActiveCoordinateSystemNodePath ()
void	setCoordinateSystemNodePath (const osg::RefNodePath &nodePath)
void	setCoordinateSystemNodePath (const osg::NodePath &nodePath)
const osg::RefNodePath &	getCoordinateSystemNodePath () const
virtual void	frame ()
	Dispatch the cull and draw for each of the Camera's for this frame.
virtual void	requestRedraw ()
	requestRedraw() requests a single redraw.
virtual void	requestContinuousUpdate (bool)
	requestContinousUpdate(bool) is for en/disabling a throw or idle callback to be requested by a GUIEventHandler (typically a MatrixManipulator, though other GUIEventHandler's may also provide functionality).
virtual void	requestWarpPointer (float x, float y)
	requestWarpPointer(int,int) is requesting a repositioning of the mouse pointer to a specified x,y location on the window.
bool	computePixelCoords (float x, float y, unsigned int cameraNum, float &pixel_x, float &pixel_y)
	Compute, from normalized mouse coords, for sepecified Camera, the pixel coords relative to that Camera's RenderSurface.
bool	computeNearFarPoints (float x, float y, unsigned int cameraNum, osg::Vec3 &near, osg::Vec3 &far)
	Compute, from normalized mouse coords, for sepecified Camera, the near and far points in worlds coords.
bool	computeIntersections (float x, float y, unsigned int cameraNum, osg::Node *node, osgUtil::IntersectVisitor::HitList &hits, osg::Node::NodeMask traversalMask=0xffffffff)
	Compute, from normalized mouse coords, for all Cameras, intersections with the specified subgraph.
bool	computeIntersections (float x, float y, unsigned int cameraNum, osgUtil::IntersectVisitor::HitList &hits, osg::Node::NodeMask traversalMask=0xffffffff)
	Compute, from normalized mouse coords, for sepecified Camera, intersections with the scene.
bool	computeIntersections (float x, float y, osg::Node *node, osgUtil::IntersectVisitor::HitList &hits, osg::Node::NodeMask traversalMask=0xffffffff)
	Compute, from normalized mouse coords, for all Cameras, intersections with specified subgraph.
bool	computeIntersections (float x, float y, osgUtil::IntersectVisitor::HitList &hits, osg::Node::NodeMask traversalMask=0xffffffff)
	Compute, from normalized mouse coords, for all Cameras, intersections with the scene.
void	setKeyboardMouse (Producer::KeyboardMouse *kbm)
Producer::KeyboardMouse *	getKeyboardMouse ()
const Producer::KeyboardMouse *	getKeyboardMouse () const
void	setKeyboardMouseCallback (osgProducer::KeyboardMouseCallback *kbmcb)
osgProducer::KeyboardMouseCallback *	getKeyboardMouseCallback ()
const osgProducer::KeyboardMouseCallback *	getKeyboardMouseCallback () const
EventHandlerList &	getEventHandlerList ()
const EventHandlerList &	getEventHandlerList () const
osgGA::KeySwitchMatrixManipulator *	getKeySwitchMatrixManipulator ()
const osgGA::KeySwitchMatrixManipulator *	getKeySwitchMatrixManipulator () const
unsigned int	addCameraManipulator (osgGA::MatrixManipulator *cm)
void	selectCameraManipulator (unsigned int no)
void	getCameraManipulatorNameList (std::list< std::string > &nameList)
bool	selectCameraManipulatorByName (const std::string &name)
osgGA::MatrixManipulator *	getCameraManipulatorByName (const std::string &name)
void	setRecordingAnimationPath (bool on)
bool	getRecordingAnimationPath () const
void	setAnimationPath (osg::AnimationPath *path)
osg::AnimationPath *	getAnimationPath ()
const osg::AnimationPath *	getAnimationPath () const
const double *	getPosition () const
double	getSpeed () const
osg::Quat	getOrientation () const
virtual void	getUsage (osg::ApplicationUsage &usage) const
	Get the keyboard and mouse usage of this viewer.
virtual void	updatedSceneData ()
	Update internal structures w.r.t updated scene data.
Protected Attributes
bool	_setDoneAtElapsedTimeEnabled
double	_setDoneAtElapsedTime
bool	_setDoneAtFrameNumberEnabled
unsigned int	_setDoneAtFrameNumber
bool	_done
bool	_writeImageWhenDone
std::string	_writeImageFileName
osg::ref_ptr< Producer::KeyboardMouse >	_kbm
osg::ref_ptr< osgProducer::KeyboardMouseCallback >	_kbmcb
EventHandlerList	_eventHandlerList
osg::ref_ptr< osgGA::KeySwitchMatrixManipulator >	_keyswitchManipulator
osg::ref_ptr< osg::NodeVisitor >	_updateVisitor
osg::ref_ptr< osgGA::EventVisitor >	_eventVisitor
osg::RefNodePath	_coordinateSystemNodePath
bool	_recordingAnimationPath
double	_recordingStartTime
osg::ref_ptr< osg::AnimationPath >	_animationPath
double	_position [3]
osg::Quat	_orientation
double	_speed

Detailed Description

A Producer-based viewer.

Just like OpenGL, the core of OSG is independent of windowing system. The integration between OSG and some windowing system is delegated to other, non-core parts of OSG (users are also allowed to integrate OSG with any exotic windowing system they happen to use). Viewer implements the integration between OSG and Producer, AKA Open Producer (http://www.andesengineering.com/Producer), thus offering an out-of-the-box, scalable and multi-platform abstraction of the windowing system.

Member Typedef Documentation

typedef std::list< osg::ref_ptr<osgGA::GUIEventHandler> > osgProducer::Viewer::EventHandlerList

Member Enumeration Documentation

enum osgProducer::Viewer::ViewerOptions

Specifies options to control some aspects of the Viewer behavior (using the setUpViewer() member function).

Enumeration values:

NO_EVENT_HANDLERS Do not activate any standard event handlers.
If no event handlers are selected then the users would typically register their own custom event handlers to add user interaction via getEventHandlerList().push_back(myEventHandler) or addCameraManipulator(myCameraManipualtor).

TRACKBALL_MANIPULATOR Add an osgGA::TrackballManipulator to manipulate the camera interactively.

DRIVE_MANIPULATOR Add an osgGA::DriveManipulator to manipulate the camera interactively.

FLIGHT_MANIPULATOR Add an osgGA::FlightManipulator to manipulate the camera interactively.

TERRAIN_MANIPULATOR Add an osgGA::TerrainManipulator to manipulate the camera interactively.

UFO_MANIPULATOR Add an osgGA::UFOManipulator to manipulate the camera interactively.

STATE_MANIPULATOR Add an osgGA::StateSetManipulator to interactively toggle some bits of the renderer state (texturing, lightning...).

HEAD_LIGHT_SOURCE Add a light source some point near the camera.

SKY_LIGHT_SOURCE Add a light source above the scene; does nothing if HEAD_LIGHT_SOURCE is also used.

STATS_MANIPULATOR Add peformance statistics reporting, currently implemented via VIEWER_MANPULATOR.

VIEWER_MANIPULATOR Add an osgProducer::ViewerEventHandler that enables lots of tricks like performance statistics and writing the scene to a file.

ESCAPE_SETS_DONE Finish the viewer execution when the ESC key is pressed.

STANDARD_SETTINGS Enable a set of standard settings (TRACKBALL_MANIPULATOR, DRIVE_MANIPULATOR, FLIGHT_MANIPULATOR, TERRAIN_MANIPULATOR, STATE_MANIPULATOR, HEAD_LIGHT_SOURCE, STATS_MANIPULATOR, VIEWER_MANIPULATOR, ESCAPE_SETS_DONE).

Constructor & Destructor Documentation

osgProducer::Viewer::Viewer ( )

osgProducer::Viewer::Viewer ( Producer::CameraConfig * cfg )

osgProducer::Viewer::Viewer ( const std::string & configFile )

osgProducer::Viewer::Viewer ( osg::ArgumentParser & arguments )

virtual osgProducer::Viewer::~Viewer ( ) [virtual]

Member Function Documentation

unsigned int osgProducer::Viewer::addCameraManipulator ( osgGA::MatrixManipulator * cm )

void osgProducer::Viewer::computeActiveCoordinateSystemNodePath ( )

bool osgProducer::Viewer::computeIntersections ( float x,

float y,

osgUtil::IntersectVisitor::HitList & hits,

osg::Node::NodeMask traversalMask = 0xffffffff

)

Compute, from normalized mouse coords, for all Cameras, intersections with the scene.

bool osgProducer::Viewer::computeIntersections ( float x,

float y,

osg::Node * node,

osgUtil::IntersectVisitor::HitList & hits,

osg::Node::NodeMask traversalMask = 0xffffffff

)

Compute, from normalized mouse coords, for all Cameras, intersections with specified subgraph.

bool osgProducer::Viewer::computeIntersections ( float x,

float y,

unsigned int cameraNum,

osgUtil::IntersectVisitor::HitList & hits,

osg::Node::NodeMask traversalMask = 0xffffffff

)

Compute, from normalized mouse coords, for sepecified Camera, intersections with the scene.

bool osgProducer::Viewer::computeIntersections ( float x,

float y,

unsigned int cameraNum,

osg::Node * node,

osgUtil::IntersectVisitor::HitList & hits,

osg::Node::NodeMask traversalMask = 0xffffffff

)

Compute, from normalized mouse coords, for all Cameras, intersections with the specified subgraph.

bool osgProducer::Viewer::computeNearFarPoints ( float x,

float y,

unsigned int cameraNum,

osg::Vec3 & near,

osg::Vec3 & far

)

Compute, from normalized mouse coords, for sepecified Camera, the near and far points in worlds coords.

bool osgProducer::Viewer::computePixelCoords ( float x,

float y,

unsigned int cameraNum,

float & pixel_x,

float & pixel_y

)

Compute, from normalized mouse coords, for sepecified Camera, the pixel coords relative to that Camera's RenderSurface.

virtual bool osgProducer::Viewer::done ( ) const [virtual]

Return true if the application is done and should exit.

virtual void osgProducer::Viewer::frame ( ) [virtual]

Dispatch the cull and draw for each of the Camera's for this frame.

Reimplemented from osgProducer::OsgCameraGroup.

const osg::AnimationPath* osgProducer::Viewer::getAnimationPath ( ) const [inline]

osg::AnimationPath* osgProducer::Viewer::getAnimationPath ( ) [inline]

osgGA::MatrixManipulator* osgProducer::Viewer::getCameraManipulatorByName ( const std::string & name )

void osgProducer::Viewer::getCameraManipulatorNameList ( std::list< std::string > & nameList )

const osg::RefNodePath& osgProducer::Viewer::getCoordinateSystemNodePath ( ) const [inline]

bool osgProducer::Viewer::getDone ( ) const [inline]

Get the done flag which signals that the viewer exit.

double osgProducer::Viewer::getDoneAtElapsedTime ( ) const [inline]

Get the elapsed time that will cause done to be set to be true.

bool osgProducer::Viewer::getDoneAtElapsedTimeEnabled ( ) const [inline]

Get whether to use a elapsed time to limit the run of the viewer.

unsigned int osgProducer::Viewer::getDoneAtFrameNumber ( ) const [inline]

Get the frame number that will cause done to be set to be true.

bool osgProducer::Viewer::getDoneAtFrameNumberEnabled ( ) const [inline]

Get whether to use a frame number to limit the run of the viewer.

const EventHandlerList& osgProducer::Viewer::getEventHandlerList ( ) const [inline]

EventHandlerList& osgProducer::Viewer::getEventHandlerList ( ) [inline]

const osgGA::EventVisitor* osgProducer::Viewer::getEventVisitor ( ) const [inline]

Get the const update visitor.

osgGA::EventVisitor* osgProducer::Viewer::getEventVisitor ( ) [inline]

Get the update visitor.

const Producer::KeyboardMouse* osgProducer::Viewer::getKeyboardMouse ( ) const [inline]

Producer::KeyboardMouse* osgProducer::Viewer::getKeyboardMouse ( ) [inline]

const osgProducer::KeyboardMouseCallback* osgProducer::Viewer::getKeyboardMouseCallback ( ) const [inline]

osgProducer::KeyboardMouseCallback* osgProducer::Viewer::getKeyboardMouseCallback ( ) [inline]

const osgGA::KeySwitchMatrixManipulator* osgProducer::Viewer::getKeySwitchMatrixManipulator ( ) const [inline]

osgGA::KeySwitchMatrixManipulator* osgProducer::Viewer::getKeySwitchMatrixManipulator ( ) [inline]

osg::Quat osgProducer::Viewer::getOrientation ( ) const [inline]

const double* osgProducer::Viewer::getPosition ( ) const [inline]

bool osgProducer::Viewer::getRecordingAnimationPath ( ) const [inline]

double osgProducer::Viewer::getSpeed ( ) const [inline]

const osg::NodeVisitor* osgProducer::Viewer::getUpdateVisitor ( ) const [inline]

Get the const update visitor.

osg::NodeVisitor* osgProducer::Viewer::getUpdateVisitor ( ) [inline]

Get the update visitor.

virtual void osgProducer::Viewer::getUsage ( osg::ApplicationUsage & usage ) const [virtual]

Get the keyboard and mouse usage of this viewer.

const std::string& osgProducer::Viewer::getWriteImageFileName ( ) const

Set the filename to write to when the viewer takes an image snapshot on the last frame() when done is enabled.

bool osgProducer::Viewer::getWriteImageWhenDone ( ) const [inline]

Set the viewer to take an image snapshot on the last frame() when done is enabled.

virtual bool osgProducer::Viewer::realize ( ) [virtual]

Realize the render surfaces (OpenGL graphics) and various threads, and call any realize callbacks.

Reimplemented from osgProducer::OsgCameraGroup.

virtual bool osgProducer::Viewer::realize ( ThreadingModel thread_model ) [virtual]

Set the threading model and then call realize().

Reimplemented from osgProducer::OsgCameraGroup.

virtual void osgProducer::Viewer::requestContinuousUpdate ( bool ) [virtual]

requestContinousUpdate(bool) is for en/disabling a throw or idle callback to be requested by a GUIEventHandler (typically a MatrixManipulator, though other GUIEventHandler's may also provide functionality).
GUI toolkits can respond to this immediately by registering an idle/timed callback, or can delay setting the callback and update at their own leisure.
Implements osgGA::GUIActionAdapter.

virtual void osgProducer::Viewer::requestRedraw ( ) [virtual]

requestRedraw() requests a single redraw.

Implements osgGA::GUIActionAdapter.

virtual void osgProducer::Viewer::requestWarpPointer ( float x,

float y

) [virtual]

requestWarpPointer(int,int) is requesting a repositioning of the mouse pointer to a specified x,y location on the window.
This is used by some camera manipulators to initialise the mouse pointer when mouse position relative to a controls neutral mouse position is required, i.e when mimicking a aircrafts joystick.
Implements osgGA::GUIActionAdapter.

void osgProducer::Viewer::selectCameraManipulator ( unsigned int no )

bool osgProducer::Viewer::selectCameraManipulatorByName ( const std::string & name )

void osgProducer::Viewer::setAnimationPath ( osg::AnimationPath * path ) [inline]

void osgProducer::Viewer::setCoordinateSystemNodePath ( const osg::NodePath & nodePath )

void osgProducer::Viewer::setCoordinateSystemNodePath ( const osg::RefNodePath & nodePath ) [inline]

void osgProducer::Viewer::setDone ( bool done ) [inline]

Set the done flag signalling that the viewer exit.

void osgProducer::Viewer::setDoneAtElapsedTime ( double elapsedTime ) [inline]

Set the viewer so it sets done to true once the refrence time equals or exceeds specified elapsed time.
Automatically does a setDoneAtElapsedTimeEnabled(true).

void osgProducer::Viewer::setDoneAtElapsedTimeEnabled ( bool enabled ) [inline]

Set whether to use a elapsed time to limit the run of the viewer.

void osgProducer::Viewer::setDoneAtFrameNumber ( unsigned int frameNumber ) [inline]

Set the viewer so it sets done to true once the frame number equals or exceeds specified frame number.
Automatically does a setDoneAtFrameNumberEnabled(true).

void osgProducer::Viewer::setDoneAtFrameNumberEnabled ( bool enabled ) [inline]

Set whether to use a frame number to limit the run of the viewer.

void osgProducer::Viewer::setEventVisitor ( osgGA::EventVisitor * nv ) [inline]

Set the update visitor which does the event traversal of the scene graph.
Automatically called by the update() method.

void osgProducer::Viewer::setKeyboardMouse ( Producer::KeyboardMouse * kbm )

void osgProducer::Viewer::setKeyboardMouseCallback ( osgProducer::KeyboardMouseCallback * kbmcb )

void osgProducer::Viewer::setRecordingAnimationPath ( bool on ) [inline]

void osgProducer::Viewer::setUpdateVisitor ( osg::NodeVisitor * nv ) [inline]

Set the update visitor which does the update traversal of the scene graph.
Automatically called by the update() method.

void osgProducer::Viewer::setUpViewer ( unsigned int options = STANDARD_SETTINGS )

Set up the viewer, allowing to control some aspects of its behavior.

Parameters:

options One or more of the options defined by the ViewerOptions enumeration, combined using the bitwise OR operator (``|'').

virtual void osgProducer::Viewer::setViewByMatrix ( const Producer::Matrix & pm ) [virtual]

Override the Producer::CameraGroup::setViewByMatrix to catch all changes to view.

void osgProducer::Viewer::setWriteImageFileName ( const std::string & filename )

Set the filename to write to when the viewer takes an image snapshot on the last frame() when done is enabled.

void osgProducer::Viewer::setWriteImageWhenDone ( bool enabled ) [inline]

Set the viewer to take an image snapshot on the last frame() when done is enabled.

virtual void osgProducer::Viewer::update ( ) [virtual]

Updated the scene.
Handle any queued up events, do an update traversal and set the CameraGroup's setViewByMatrix if any camera manipulators are active.

virtual void osgProducer::Viewer::updatedSceneData ( ) [virtual]

Update internal structures w.r.t updated scene data.

Reimplemented from osgProducer::OsgCameraGroup.
