osg::Object Class Reference

Base class/standard interface for objects which require IO support, cloning and reference counting. More...

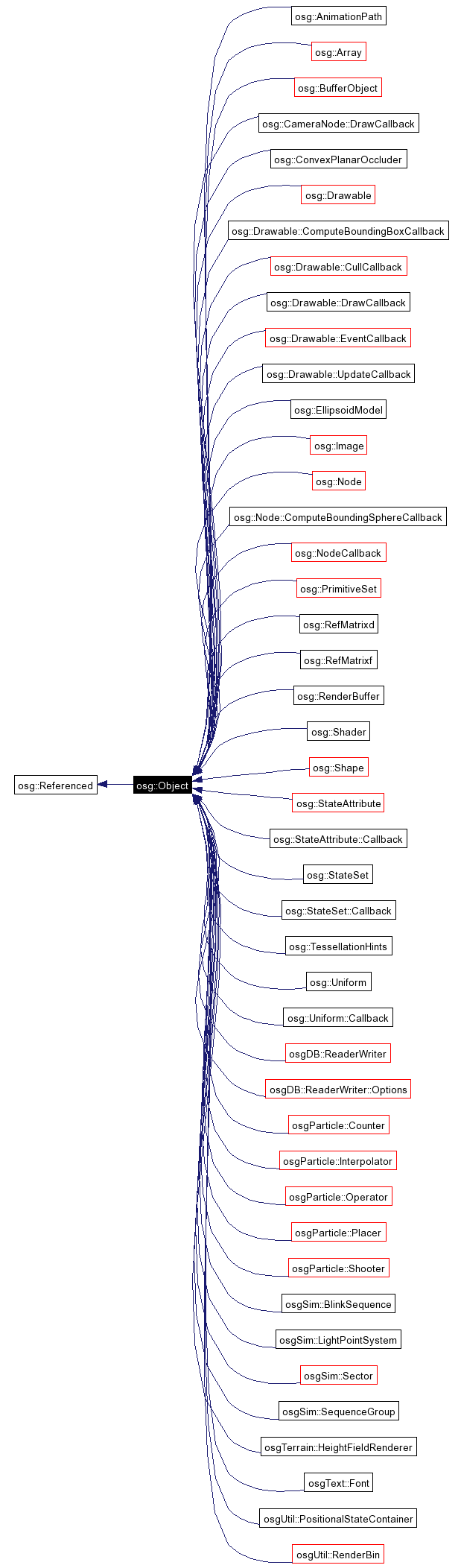

Inheritance diagram for osg::Object:

[legend]List of all members.

Public Types
enum	DataVariance { DYNAMIC, STATIC }
Public Member Functions
	Object ()
	Construct an object.
	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
	Copy constructor, optional CopyOp object can be used to control shallow vs deep copying of dynamic data.
virtual Object *	cloneType () const=0
	Clone the type of an object, with Object* return type.
virtual Object *	clone (const CopyOp &) const=0
	Clone an object, with Object* return type.
virtual bool	isSameKindAs (const Object *) const
virtual const char *	libraryName () const=0
	return the name of the object's library.
virtual const char *	className () const=0
	return the name of the object's class type.
void	setName (const std::string &name)
	Set the name of object using C++ style string.
void	setName (const char *name)
	Set the name of object using a C style string.
const std::string &	getName () const
	Get the name of object.
void	setDataVariance (DataVariance dv)
	Set the data variance of this object.
DataVariance	getDataVariance () const
	Get the data variance of this object.
void	setUserData (Referenced *obj)
	Set user data, data must be subclassed from Referenced to allow automatic memory handling.
Referenced *	getUserData ()
	Get user data.
const Referenced *	getUserData () const
	Get const user data.
virtual void	releaseGLObjects (osg::State *=0) const
	If State is non-zero, this function releases any associated OpenGL objects for the specified graphics context.
Protected Member Functions
virtual	~Object ()
	Object destructor.
Protected Attributes
std::string	_name
DataVariance	_dataVariance
ref_ptr< Referenced >	_userData

---

Detailed Description

Base class/standard interface for objects which require IO support, cloning and reference counting.

Based on GOF Composite, Prototype and Template Method patterns.

---

Member Enumeration Documentation

enum osg::Object::DataVariance

Enumeration values: DYNAMIC  STATIC

---

Constructor & Destructor Documentation

osg::Object::Object (   )  [inline]

Construct an object. Note Object is a pure virtual base class and therefore cannot be constructed on its own, only derived classes which override the clone and className methods are concrete classes and can be constructed.

osg::Object::Object (  const Object &  , const CopyOp &  copyop = CopyOp::SHALLOW_COPY )

Copy constructor, optional CopyOp object can be used to control shallow vs deep copying of dynamic data.

virtual osg::Object::~Object (   )  [inline, protected, virtual]

Object destructor. Note, is protected so that Objects cannot be deleted other than by being dereferenced and the reference count being zero (see osg::Referenced), preventing the deletion of nodes which are still in use. This also means that Nodes cannot be created on stack i.e Node node will not compile, forcing all nodes to be created on the heap i.e Node* node = new Node().

---

Member Function Documentation

virtual const char* osg::Object::className (   )  const [pure virtual]

return the name of the object's class type. Must be defined by derived classes. Implemented in osg::Array, osg::AutoTransform, osg::BufferObject, osg::Drawable, osg::DrawPixels, osg::Geometry, osg::Image, osg::ImageStream, osg::RefMatrixd, osg::RefMatrixf, osg::Node, osg::PrimitiveSet, osg::DrawArrays, osg::DrawArrayLengths, osg::DrawElementsUByte, osg::DrawElementsUShort, osg::DrawElementsUInt, osg::Shape, osg::ShapeDrawable, osg::StateAttribute, osg::StateSet, osg::Texture, osgDB::Archive, osgFX::Effect, osgGA::AnimationPathManipulator, osgGA::DriveManipulator, osgGA::FlightManipulator, osgGA::CompositeGUIEventHandler, osgGA::KeySwitchMatrixManipulator, osgGA::MatrixManipulator, osgGA::NodeTrackerManipulator, osgGA::StateSetManipulator, osgGA::TerrainManipulator, osgGA::TrackballManipulator, osgGA::UFOManipulator, osgParticle::CenteredPlacer, osgParticle::Counter, osgParticle::Emitter, osgParticle::Interpolator, osgParticle::Operator, osgParticle::ParticleEffect, osgParticle::ParticleProcessor, osgParticle::Placer, osgParticle::Program, osgParticle::Shooter, osgParticle::VariableRateCounter, osgSim::ImpostorSprite, osgSim::Sector, osgText::Font, osgText::Font::GlyphTexture, osgText::Text, osgUtil::PositionalStateContainer, osgUtil::RenderBin, and osgUtil::RenderStage.

virtual Object* osg::Object::clone (  const CopyOp &   )  const [pure virtual]

Clone an object, with Object* return type. Must be defined by derived classes. Implemented in osg::TemplateArray< T, ARRAYTYPE, DataSize, DataType >, osg::TemplateIndexArray< T, ARRAYTYPE, DataSize, DataType >, osg::DrawPixels, osg::Geometry, osg::Image, osg::ImageStream, osg::RefMatrixd, osg::RefMatrixf, osg::Node, osg::DrawArrays, osg::DrawArrayLengths, osg::DrawElementsUByte, osg::DrawElementsUShort, osg::DrawElementsUInt, osg::Shape, osg::ShapeDrawable, osg::StateAttribute, osg::StateSet, osg::Texture, osg::TemplateArray< Vec4, Array::Vec4ArrayType, 4, GL_FLOAT >, osg::TemplateArray< Vec3, Array::Vec3ArrayType, 3, GL_FLOAT >, and osg::TemplateIndexArray< GLuint, Array::UIntArrayType, 1, GL_UNSIGNED_INT >.

virtual Object* osg::Object::cloneType (   )  const [pure virtual]

Clone the type of an object, with Object* return type. Must be defined by derived classes. Implemented in osg::TemplateArray< T, ARRAYTYPE, DataSize, DataType >, osg::TemplateIndexArray< T, ARRAYTYPE, DataSize, DataType >, osg::AutoTransform, osg::DrawPixels, osg::Geometry, osg::Image, osg::ImageStream, osg::RefMatrixd, osg::RefMatrixf, osg::Node, osg::DrawArrays, osg::DrawArrayLengths, osg::DrawElementsUByte, osg::DrawElementsUShort, osg::DrawElementsUInt, osg::Shape, osg::ShapeDrawable, osg::StateAttribute, osg::StateSet, osg::Texture, osgSim::ImpostorSprite, osgText::Font, osgText::Text, osgUtil::PositionalStateContainer, osgUtil::RenderBin, osgUtil::RenderStage, osg::TemplateArray< Vec4, Array::Vec4ArrayType, 4, GL_FLOAT >, osg::TemplateArray< Vec3, Array::Vec3ArrayType, 3, GL_FLOAT >, and osg::TemplateIndexArray< GLuint, Array::UIntArrayType, 1, GL_UNSIGNED_INT >.

DataVariance osg::Object::getDataVariance (   )  const [inline]

Get the data variance of this object.

const std::string& osg::Object::getName (   )  const [inline]

Get the name of object.

const Referenced* osg::Object::getUserData (   )  const [inline]

Get const user data.

Referenced* osg::Object::getUserData (   )  [inline]

Get user data.

virtual bool osg::Object::isSameKindAs (  const Object *   )  const [inline, virtual]

Reimplemented in osg::Array, osg::IndexArray, osg::BufferObject, osg::Drawable, osg::DrawPixels, osg::Geometry, osg::Image, osg::ImageStream, osg::RefMatrixd, osg::RefMatrixf, osg::Node, osg::PrimitiveSet, osg::DrawArrays, osg::DrawArrayLengths, osg::DrawElementsUByte, osg::DrawElementsUShort, osg::DrawElementsUInt, osg::Shape, osg::ShapeDrawable, osg::StateAttribute, and osg::StateSet.

virtual const char* osg::Object::libraryName (   )  const [pure virtual]

return the name of the object's library. Must be defined by derived classes. The OpenSceneGraph convention is that the namespace of a library is the same as the library name. Implemented in osg::Array, osg::AutoTransform, osg::BufferObject, osg::Drawable, osg::DrawPixels, osg::Geometry, osg::Image, osg::ImageStream, osg::RefMatrixd, osg::RefMatrixf, osg::Node, osg::PrimitiveSet, osg::DrawArrays, osg::DrawArrayLengths, osg::DrawElementsUByte, osg::DrawElementsUShort, osg::DrawElementsUInt, osg::Shape, osg::ShapeDrawable, osg::StateAttribute, osg::StateSet, osg::Texture, osgDB::Archive, osgFX::Effect, osgParticle::CenteredPlacer, osgParticle::Counter, osgParticle::Emitter, osgParticle::Interpolator, osgParticle::Operator, osgParticle::ParticleEffect, osgParticle::ParticleProcessor, osgParticle::Placer, osgParticle::Program, osgParticle::Shooter, osgParticle::VariableRateCounter, osgSim::ImpostorSprite, osgSim::Sector, osgText::Font, osgText::Text, osgUtil::PositionalStateContainer, and osgUtil::RenderBin.

virtual void osg::Object::releaseGLObjects (  osg::State *  = 0  )  const [inline, virtual]

If State is non-zero, this function releases any associated OpenGL objects for the specified graphics context. Otherwise, releases OpenGL objexts for all graphics contexts. Reimplemented in osg::Drawable, osg::FragmentProgram, osg::Geode, osg::Group, osg::Node, osg::Program, osg::StateAttribute, osg::StateSet, osg::Texture, osg::VertexProgram, osgText::Font, and osgText::Text.

void osg::Object::setDataVariance (  DataVariance  dv  )  [inline]

Set the data variance of this object. Can be set to either STATIC for values that do not change over the lifetime of the object, or DYNAMIC for values that vary over the lifetime of the object. The DataVariance value can be used by routines such as optimzation codes that wish to share static data.

void osg::Object::setName (  const char *  name  )  [inline]

Set the name of object using a C style string.

void osg::Object::setName (  const std::string &  name  )  [inline]

Set the name of object using C++ style string. Reimplemented in osg::Uniform.

void osg::Object::setUserData (  Referenced *  obj  )  [inline]

Set user data, data must be subclassed from Referenced to allow automatic memory handling. If your own data isn't directly subclassed from Referenced then create an adapter object which points to your own object and handles the memory addressing.

---

Member Data Documentation

DataVariance osg::Object::_dataVariance [protected]

std::string osg::Object::_name [protected]

ref_ptr<Referenced> osg::Object::_userData [protected]

---

The documentation for this class was generated from the following file:

• Object

---
